Danalock Smart Lock V3 - BT & Zigbee (3.0), black

How can you use the smart lock Danalock V3?

Open any door with smart phone or Apple Watch

Danalock V3 isthe safest and smallest lock in its category

It also excels in speed and number of additional features

Lock is easy to install on all common types of doors

V3 is is powered by its own batteries (supplied battery with service life up to 1 year or 9000 cycles)

From the outside it also works as a standard cylinder lock, you can unlock with a classic key at any time

Danalock V3 is great for kids who can easily control smart phones – don’t worry about lost keys

Allow access to your apartment to other people that don´t have keys (craftsmen, housekeeper)

Smart locking at the highest security class

Danalock responds to developments in security technology and V3 is already the 3rd generation of security locks

In contrast with previous versions, the V3 is 4x faster and 2x stronger and significantly smaller and lighter

The smart lock Danalock V3 is the winner of safety tests

The administrator grants users access levels and always has an overview of who used the door and when

Data transfer is encrypted using TLS 1.2

A Hardware Security Module (HSM) chip stores high-security encryption keys

There is no sharing of personal key settings

For what exactly you can use Danalock application?

Step by step it will guide you through the installation and calibration of the Danalock V3 lock

If you are within reach of Bluetooth area, you will see the lock status (open / locked)

You can watch the remaining battery capacity of the lock (notifications when dropping 30, 20, 15, and 10%)

Data transfer is encrypted using the AES 128 algorithm

Through Bluetooth you will unlock the lock automatically when you arrive home

After your arrival, it automatically locks

Controls motorized fuse Twist Assist

You can set up 3 separate access levels (one-time, regular, permanent) and manage guest accounts

Permission sending via email or SMS - the user downloads the application and unlocks it

You are optionally receiving notifications

We encourage to grant permanent access to family members - for example, you will be informed that children are home

Thanks to Danalock, the Zigbee version is compatible with Danalock Danapad

Application

Free Danalock application for smartphones and tablets with systems iOS (from version 9.0) and Android (from version 5.0) and Bluetooth 4.2. After downloading the app, create a user (administrator) account and add a new lock to the virtual keychain.

How does the smart security lock work?

Open Danalock V3 with a single touch of the phone display, or even with an Apple Watch app. Upon receiving the signal, the Danalock V3 rotates a specially modified insert and leaves the lock tab open for 5 seconds. The door is then fully locked in with Auto Lock according to the settings after 1 to 180 seconds. You will never have to come back to see if you have accidentally left the door unlocked.

You can manage up to 100 users of a single lock with different types of rights. Each user can access an unlimited number of locks. Each lock is unique, so it can have only one owner - the administrator (when the administrator changes, in this case, the original administrator must remove the lock from its keychain).

Manual unlocking and Twist-Assist function

You can open from the outside with a classic key. This is especially in case your phone battery is dead. And if you want to open or close the door from the inside, just move the Danalock V3 handle slightly in a given direction. The Twist-Assist feature completes the operation for you, so you're sure it all locks in place perfectly.

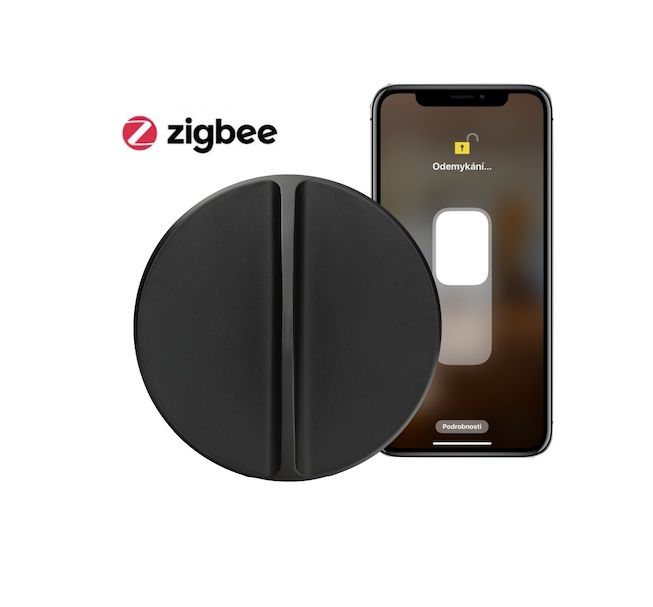

Connect all your smart home devices with Zigbee

In case you already have or want to purchase smart devices communicating through Zigbee protocol

You can open a door from all over the world, you just need an access to the Internet

Allows you to launch additional actions by unlocking the door

The only condition is support from your smart home's headquarters

You can use the Zigbee extension to for example turn on the light, turn off the alarm or start the music when the door is opened

And after locking? The reverse actions follow

With the Danalock app, the Zigbee version is compatible with Danalock Danapad

For details on the compatibility, features, and support of Amazon Alexa's assistant, see the Comparison Overview

Summary of the basic features of the Danalock V3

Smart lock controlled via Bluetooth 4.2 and Zigbee

You control the lock with an app for the iOS and watchOS supported phones, tablets and watches

Suitable for all types of standard doors

Easy installation and activation, incl. automatic calibration

1 owner (manager), up to 100 users with different access levels (one time, repeat, persistent)

Notification of invitation acceptance, lock usage, battery status

Possibility of detailed monitoring of lock usage

Auto Lock feature– automatic door lock in 1 - 180 seconds

Twist Assist feature – completes manual unlock / lock

The communication between the lock and the phone is encrypted by the AES 128 algorithm

Compatible accessories

Danapad V3 – eletronic code lock

Gerda universal certified cylinder for Danalock

Spare key for Gerda cylinder

M&C Color adjustable certified cylinder for Danalock

Spare key for cylinder insert M&C Color

Danalock V3 universal module - Bluetooth for controlling electronic devices and drives

Salto universal adapter for mounting Danalock V3 on safety cylinder

Technical specifications

Max. rotation range: 1080 ° in 3 turns

Battery: 4x CR123A (included)

Battery life: approx. 9000 cycles

Wireless communication: Bluetooth 4.2

Bluetooth range: 5 m

Material: anodized aluminium / ABS plastic

Size: 59 x 59 x 68 mm

Weight: 130 g / 195 g incl. batteries

LED status indication of the lock

Green light goes out - the lock has been unlocked successfully

Red light goes out - the lock has been locked successfully

White light for 3 seconds - lock identification, active status

Purple light - firmware update

Blue blink – changing the setting

Red blink every 5 minutes - critical battery condition

Package contents

Danalock V3 lock

4 xCR123A battery

Rear mounting plate

Plastic (ABS) adapter

Video and instruction







The world leader in the development and manufacture of smart locks and safety accessories Danalock is still a family company owned by a father and a son, the Overgaards. A team based in Denmark has been developing and refining smart locks for home and commercial sphere for more than 10 years.

The company’s global footprint is reflected in an extensive experience with various types of doors, locking systems and technologies. All models apart from the smart technologies are connected by an unexpected user comfort and superior safety.
