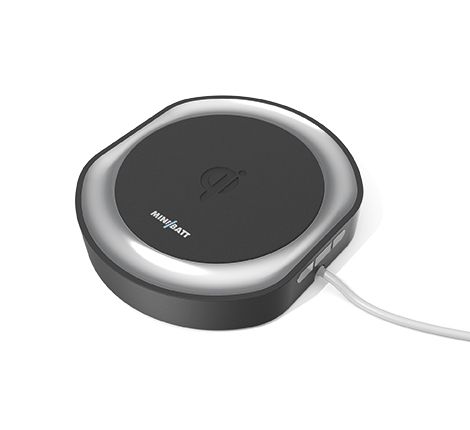

MiniBatt MODULAR – Buildable Qi Wireless Fast Charger, 15 W

Charge 3 phones wirelessly at once

MiniBatt Modular is the first buildable Qi quick charger that can charge 3 devices at once. A fast charger can handle even the most energy intensive mobile phones, including iPhone 8, 8 Plus, iPhone X or Samsung.

The extra-powerful induction coil, thanks to its high-tech chip, doesn´t allow the battery to overcharge and it will automatically shuts down after recharging. Without the need for any cables, you can connect additional modules with a magnet. Then connect the built-in charger to the wall outlet using the power adapter (part of the package) or to the laptop cable.



Each charging point on this triple charger has a power output of 5 W. In addition, the main module has a high-speed charge function. The other 2 chargers can charge devices with standard speed.

There's no limitation when charging 5V and 9V devices and smartphones. You can occupy charging points in any order. Leave the charger running in stand-by mode - it takes a minimal amount of energy.

Create a charging point on your own

The design of Modular is based on the classic Qi wireless chargers, and on the triple version you can conveniently place large smartphones side by side. The anti-slip center fixes the phone in the optimum position for charging. The dark gray color finish is complemented with a lighter edge that creates a futuristic effect when the chargers are connected.

Summary of charger features

Buildable Qi wireless quick charger

Use as a single-digit charger

Or after linking as a multicharge device

Allows you to build up to 3 Modular chargers

Simple connection via magnetic system

Extra powerful 15W fast charge system

Overload protection

Reduced power consumption in stand-by mode

Automatic charge termination after a device is charged

Anti-slip silicone finish

Also suitable for smartphones without fast charge function

Technical specifications

Extra powerful 15 W fast charge system

1 induction coil (expandable by 1 - 2 additional coils)

WPC standard Qi 1.2.4

Apple fast charge (7.5W) support

Samsung fast charge (9W) support

Input voltage and current: 12 V, 3 A

Output voltage and DC current 5 V, 1 A / 9 V, 1.1 A

Output Power 5 W - 15 W

Max. output for fast charging 10 W

Charging distance: 0 - 6 mm

Power transmission efficiency: up to 75%

Operating frequency: 110 - 205 kHz

Dimensions: ø 90 x 11 mm

Weight 175,5 g

Package contents

1 Qi wireless quick charger

Network adapter

Quick manual

Valentine's Day directed by Modular

MiniBatt is a Spanish pioneer of wireless charging and as a member of Wireless Power Consortium, it guarantees the perfect functionality of Qi's wireless charging technology. Every MiniBatt charger model comes with a new technological or design innovation. Chargers, powerbanks, and MiniBatt starter sources ensure a steady energy supply for your electronics and cars.
