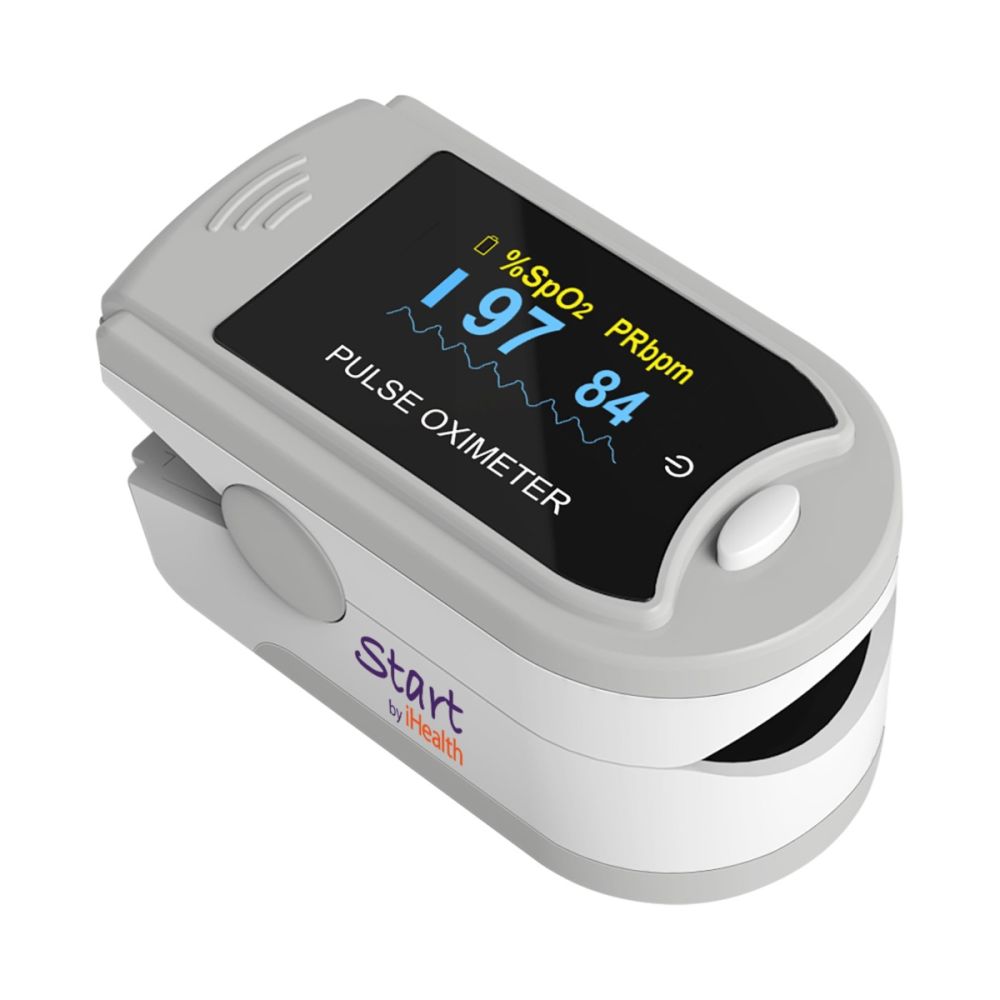

iHealth START PO2 – Pulse Oximeter

Simple use and accurate measurement

The oximeter measures your important health data – haemoglobin saturation in the blood and pulse in a non-invasive way from your fingertip. Just place your finger between the oximeter’s probes, press the button, and read the data.

The oximeter achieves high measurement accuracy thanks to the calibration of the influence of ambient light, which is necessary when using the optical measurement method to obtain the most reliable results. The oximeter uses a non-invasive and completely safe technology of measuring with 2 probes and light beams.

Rotating display makes the use easier

The data in the two-color OLED display can be shown in 6 modes of your selection. The results are shown clearly as the display can be automatically rotated, the display brightness can be adjusted, and display mode settings can be saved.

Saturation measurement technology

The oximeter measures oxygen saturation of blood using two light beams with light in the red and infrared light spectrum. The probes illuminate the capillaries at the end of the finger and evaluate oxygen saturation (SpO2) and heart rate. Saturation is given as a percentage of the maximum amount of oxygen that blood can bind.

For healthy individuals, the standard SpO2 value is between 96% and 99%. Age, high altitude, fitness, and other factors may reduce the normal value, the same way an acute illness would. SpO2 measurement is important not only for health examinations, but also for sports training or wellness activities.

Feature overview

Pulse oximeter for your finger

Suitable for both personal use and clinical practice

Suitable for both children and adults

Not suitable for continual measurement

Use: medical device, sports and wellness activities

Low power consumption

Minimum continuous operation time: 20 hours

Power supply: 2 AAA batteries (included)

Interference resistance capacity against ambient light

Main features

Shows the SpO2 value

Shows the heart rate and bar graph

Shows the pulse process

The display mode to show measured values can be changed

Low voltage indication

Pulse sound indication and above-limit data indication

Display

0,96" OLED two-colour

Resolution: 128 x 64

Shows SpO2, heart rate, heart rate process and bar graph

Low battery indication

4 directions - automatic rotation

6 data display modes (display format is saved when turned off)

Adjustable display brightness

Automatic turn-off feature after 5 s without signal

Technical specifications

Reference: PO6

Dimensions: 57 mm × 31 mm × 32 mm

Screen: LCD

Power supply: 2x 1.5V AAA batteries

Sp02 measurement range: 70-100%.

Pulse measurement range: 30-250 pulses/min

SpO2 accuracy: ±2% (70%~100%)

Pulse accuracy: ±2% or ±2 pulses/min (highest value)

Transport and storage conditions

Temperature: -40°C to 60°C

Humidity <95% RH

Atmospheric pressure: 500 hPa ~ 1060 hPa

Operating conditions

Temperature: 10°C to 40°C

Humidity <75% RH

Atmospheric pressure: 700 hPa ~ 1060 hPa

Package contents

Pulse oximeter

User manual

Lanyard

Documents

iHealth - PO2



iHealth is the world leader in the development of smart medical devices. All iHealth products are certified for medical use. The goal is to develop innovative and easy-to-use personal medical aids that connect to the data storage and use free applications for a more comprehensive view of your health. Many iHealth products include blood pressure monitors, glucometers, analytical scales, and pulse oximeters.
